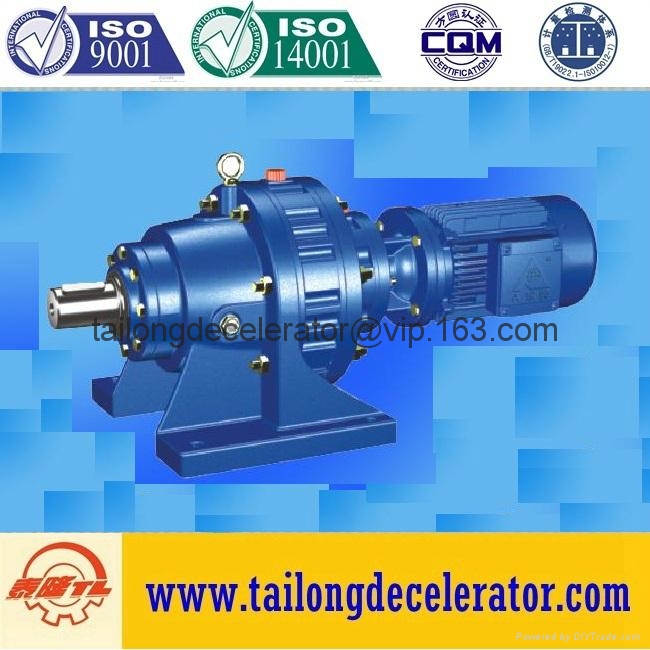

Cycloidal gear reducer is a principle adopted K-H-V Planetary Gear less innovative gear. Its transmission process as follows : input shaft equipped with a 180-degree dislocation of the double eccentric sets, replaced with two eccentric turn as a roller bearing arm, the formation of H-, two cycloid round hole at the center shall uplink Eccentric Roller Bearings arm, which cycloidal gear needle round and meshing phase, comprising a difference of the teeth meshing with the gearbox.
Model:
BLED1812、 BLED2215、 BLED2715、 BLED3322、 BLED3922、 BLED4527、 BLED5527、 BLED6533...
BLEY1812、 BLEY2215、 BLEY2715、 BLEY3322、 BLEY3922、 BLEY4527、 BLEY5527、 BLEY6533...
Ratio:
1:121 1:187 1:289 1:385 1:473 1:595 1:731 1:989 1:1225 1:1849
Output speed:(r/min)
0.5 0.7 0.8 1.0 1.1 1.3 1.4 1.6 1.9 2 2.3 2.5 3 3.3 3.6 4.8 5 7.5 8 11.5
Input power:
0.37KW 0.75KW 1.1KW 1.5KW 2.2KW 3KW 4KW 5.5KW 7.5KW 11KW 15KW
0.5HP 1HP 1.5HP 2HP 3HP 4HP 5.5HP 7.5HP 10HP 15HP 20HP
